Plot dimensionality reduction results

Source: R/PCA.R

Visualise PCA or UMAP coordinates stored in a mesaDimRed object. Wrappers such as BiocGenerics::plotPCA() and plotUMAP() provide convenient shortcuts for common use cases.

plotDimRed(
  object,
  components = list(c(1, 2), c(2, 3)),
  colour = NULL,
  colourPalette = NULL,
  NAcolour = "grey50",
  symDivColourScale = FALSE,
  shape = NULL,
  shapePalette = NULL,
  NAshape = NULL,
  showSampleNames = FALSE,
  pointSize = 2,
  alpha = 1,
  plotlyAnnotations = ""
)

Arguments

object

mesaDimRed. A dimensionality reduction container returned by getPCA() or getUMAP().

components

integer(2) or list of integer(2). Component indices to plot (e.g. c(1, 2) for PC1 vs PC2). A list of pairs generates multiple plots. Default: list(c(1, 2), c(2, 3)) for PCA, list(c(1, 2)) for UMAP.

colour

NULL or character(). Name(s) of sample-table variable(s) mapped to point colour. One plot is produced per variable. Default: NULL (no colouring).

colourPalette

NULL or character(). Palette for point colours. If NULL, defaults are selected automatically. Default: NULL.

NAcolour

character(1). Colour for missing values in colour. Default: "grey50".

symDivColourScale

logical(1). If TRUE, diverging colour scales are centred symmetrically around zero. Ignored for non-diverging scales. Default: FALSE.

shape

NULL or character(1). Sample-table variable mapped to point shape. Only one variable supported. Default: NULL.

shapePalette

NULL, character(1), or numeric(). Shapes used for categories of the shape variable. Options:

  • A numeric vector of base-R shape codes:

    • 0–20: line/filled shapes.

    • 21–25: filled shapes with borders (border colour = black).

  • A keyword:

  • "line-first": 15 line shapes, then 4 filled shapes (max 19 categories).

  • "filled-first": 4 filled shapes, then 15 line shapes (max 19 categories).

    • "mixture": mixture of line and filled shapes (max 19 categories).

  • "filled+border": filled+border shapes (max 5 categories; 4 if NAs in shape).

    • NULL: automatic choice—"mixture" unless a diverging colour scale is used, in which case "filled+border". Default: NULL.

NAshape

NULL or numeric(1). Shape used for missing values in shape. If NULL, defaults to 7, or 25 when "filled+border" is active. Default: NULL.

showSampleNames

logical(1). If TRUE, overlay sample names on points. Default: FALSE.

pointSize

numeric(1). Size of plotted points. Default: 2.

alpha

numeric(1). Transparency of points in [0, 1]. Default: 1.

plotlyAnnotations

character(). Column names from the sample table used as tooltips when converting plots to interactive plotly. Default: "" (empty string).

Value

A list of ggplot2 objects, one for each combination of:

  • component pairs in components, and

  • variables specified in colour.

Each plot depicts the requested dimensions with aesthetics mapped as specified.

See also

Other dimred-helpers: getPCA(), plotUMAP()

Examples

data(exampleTumourNormal, package = "mesa")

# PCA: colour by group
exampleTumourNormal %>%
    getPCA(nPC = 3) %>%

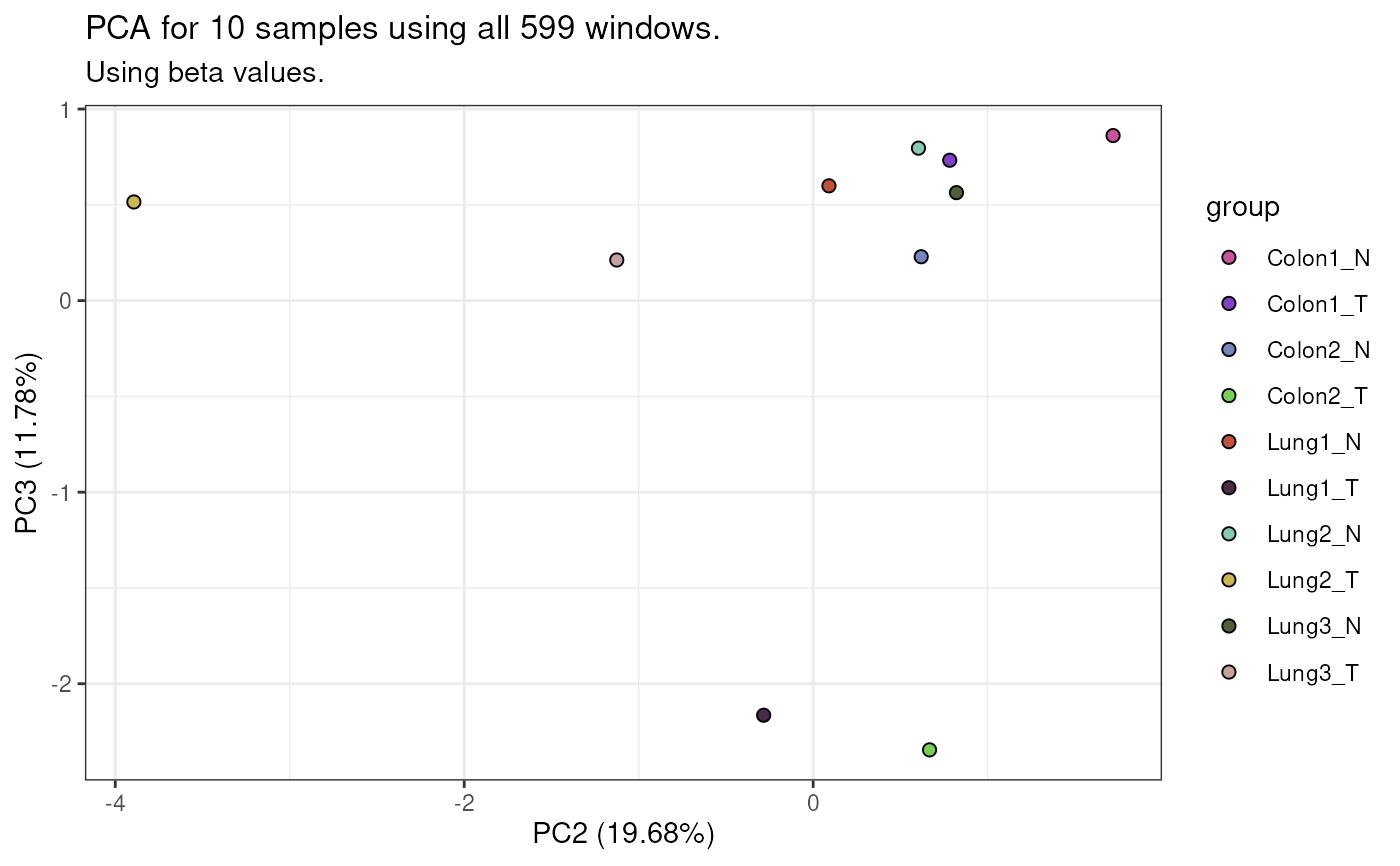

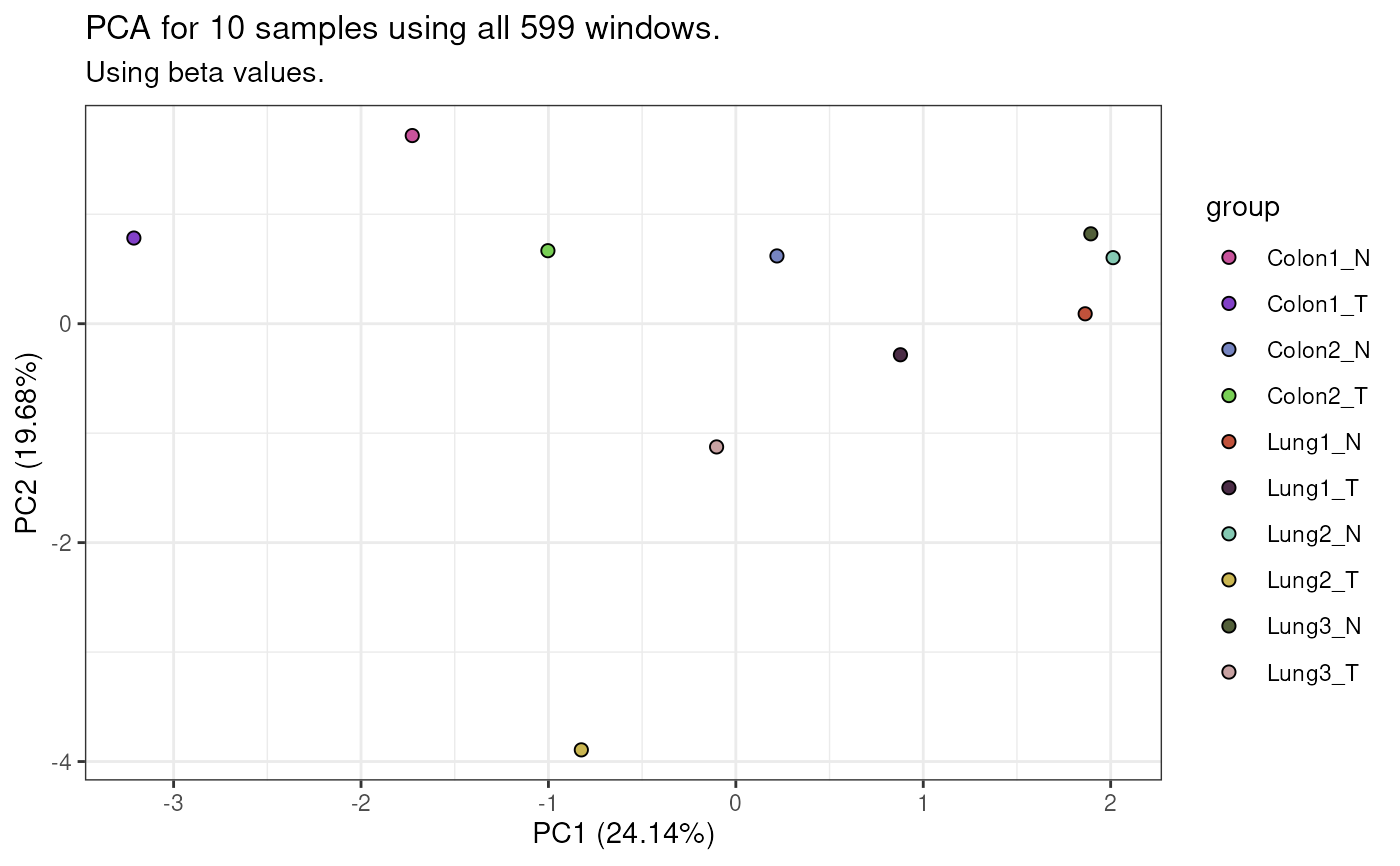

    plotDimRed(colour = "group")
#> ------------------------------
#> Initial number of windows = 819.
#> -----------
#> Generating table of beta values for 819 regions across 10 samples.
#> -----------
#> Filtered out 220 windows with at least one missing value: 599 windows remaining.
#> ------------------------------
#> The following topVarNum values are larger than the number of remaining windows (= 599): 1000
#> These values are not used; PCA will be done with all remaining windows instead.
#> ------------------------------
#> No filtering of windows based on window standard deviation.
#> Performing PCA with 10 samples and 599 windows
#> -> pca1.
#> ------------------------------
#> $pca1
#> $pca1$group
#> $pca1$group$PC1vsPC2

#>
#> $pca1$group$PC2vsPC3

#>
#>
#>

# UMAP: colour by group, shape by tissue
exampleTumourNormal %>%
    getUMAP(n_neighbors = 5, min_dist = 1) %>%
    plotDimRed(
        colour = "group",

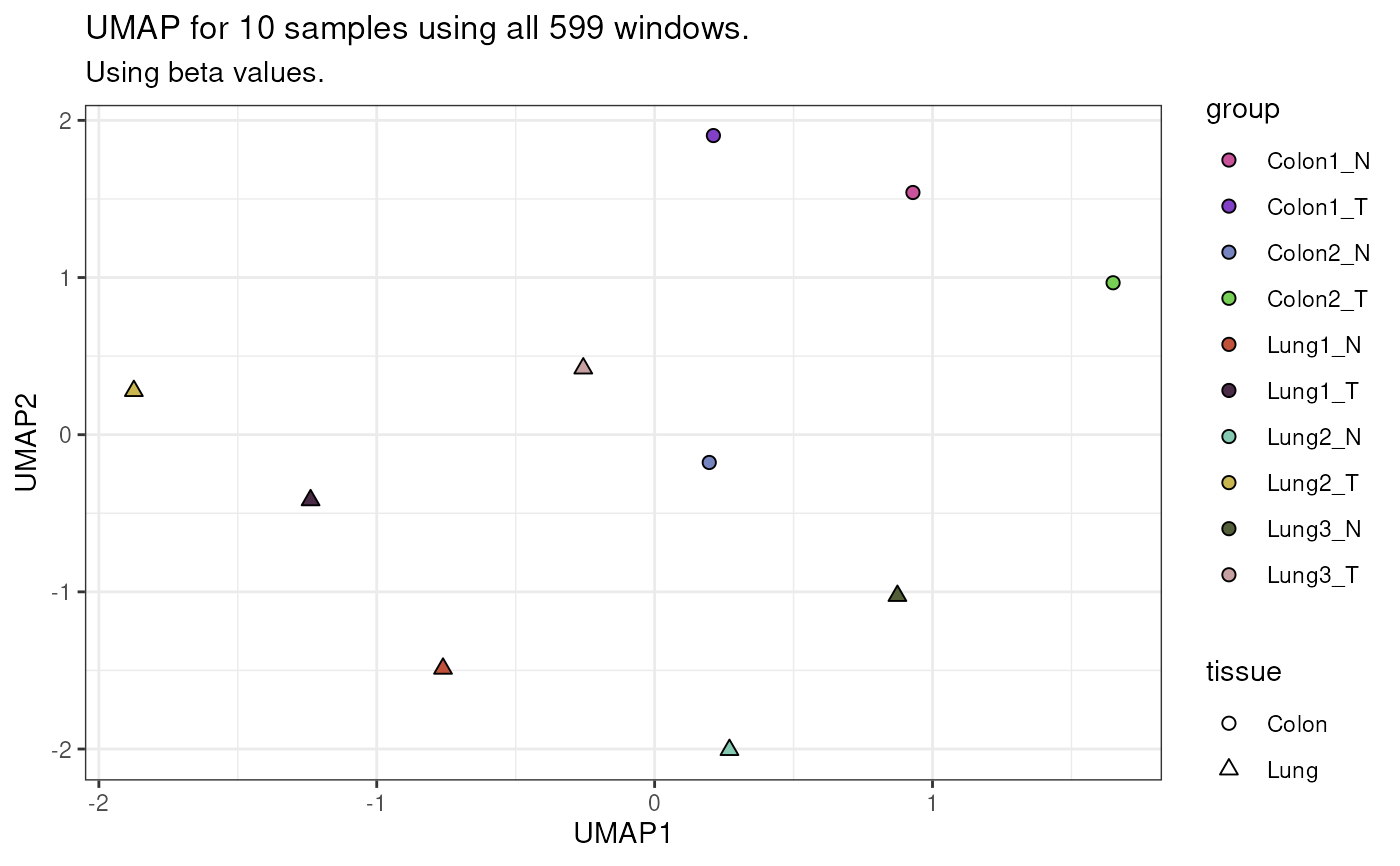

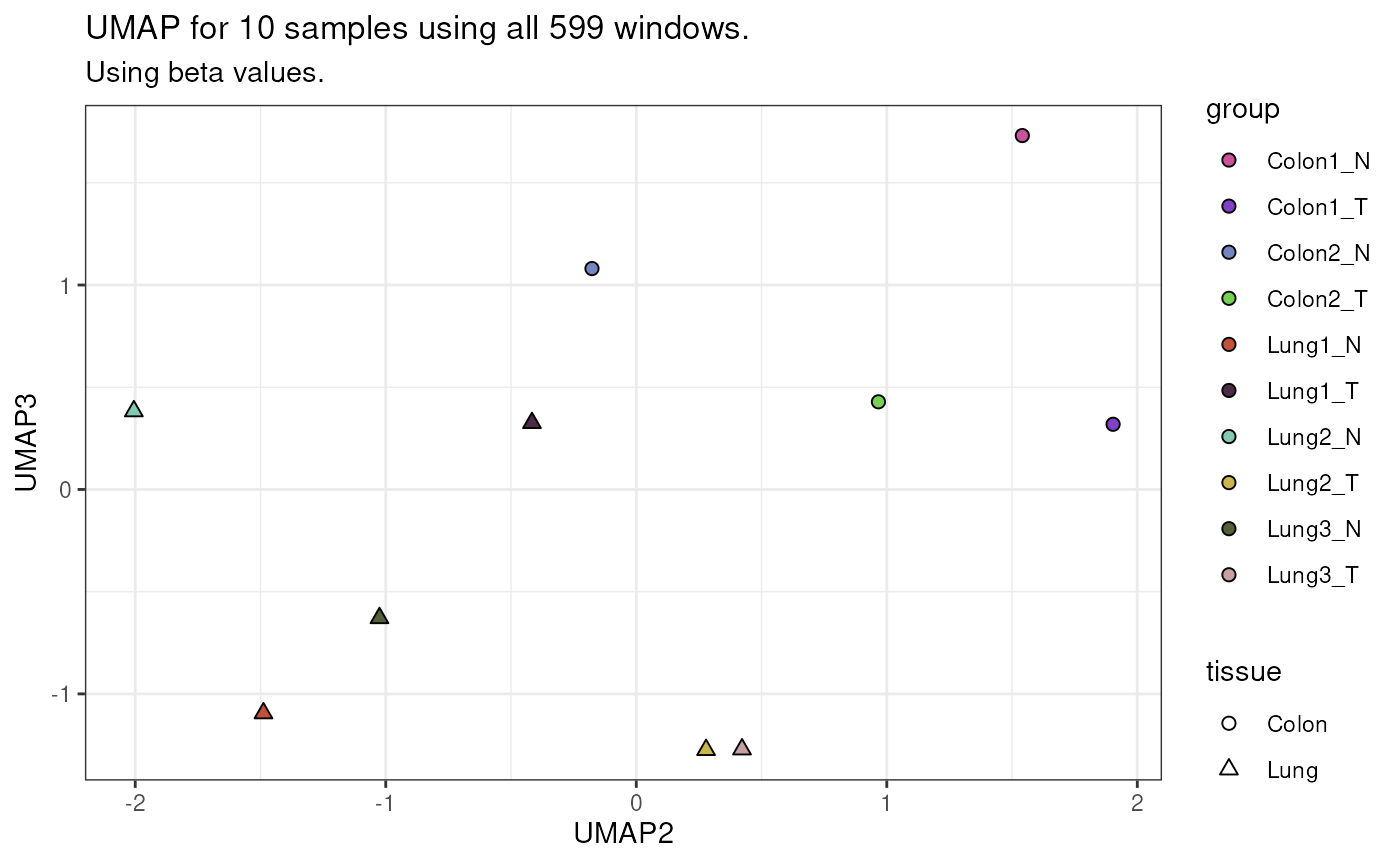

        shape = "tissue"
    )
#> ------------------------------
#> Initial number of windows = 819.
#> -----------
#> Generating table of beta values for 819 regions across 10 samples.
#> -----------
#> Filtered out 220 windows with at least one missing value: 599 windows remaining.
#> ------------------------------
#> The following topVarNum values are larger than the number of remaining windows (= 599): 1000
#> These values are not used; UMAP will be done with all remaining windows instead.
#> ------------------------------
#> No filtering of windows based on window standard deviation.
#> Performing UMAP with 10 samples and 599 windows
#> -> umap1.
#> ------------------------------
#> $umap1
#> $umap1$group
#> $umap1$group$UMAP1vsUMAP2

#>
#> $umap1$group$UMAP2vsUMAP3

#>
#>
#>

# Show sample names
exampleTumourNormal %>%
    getPCA(nPC = 3) %>%
    plotDimRed(
        colour = "group",

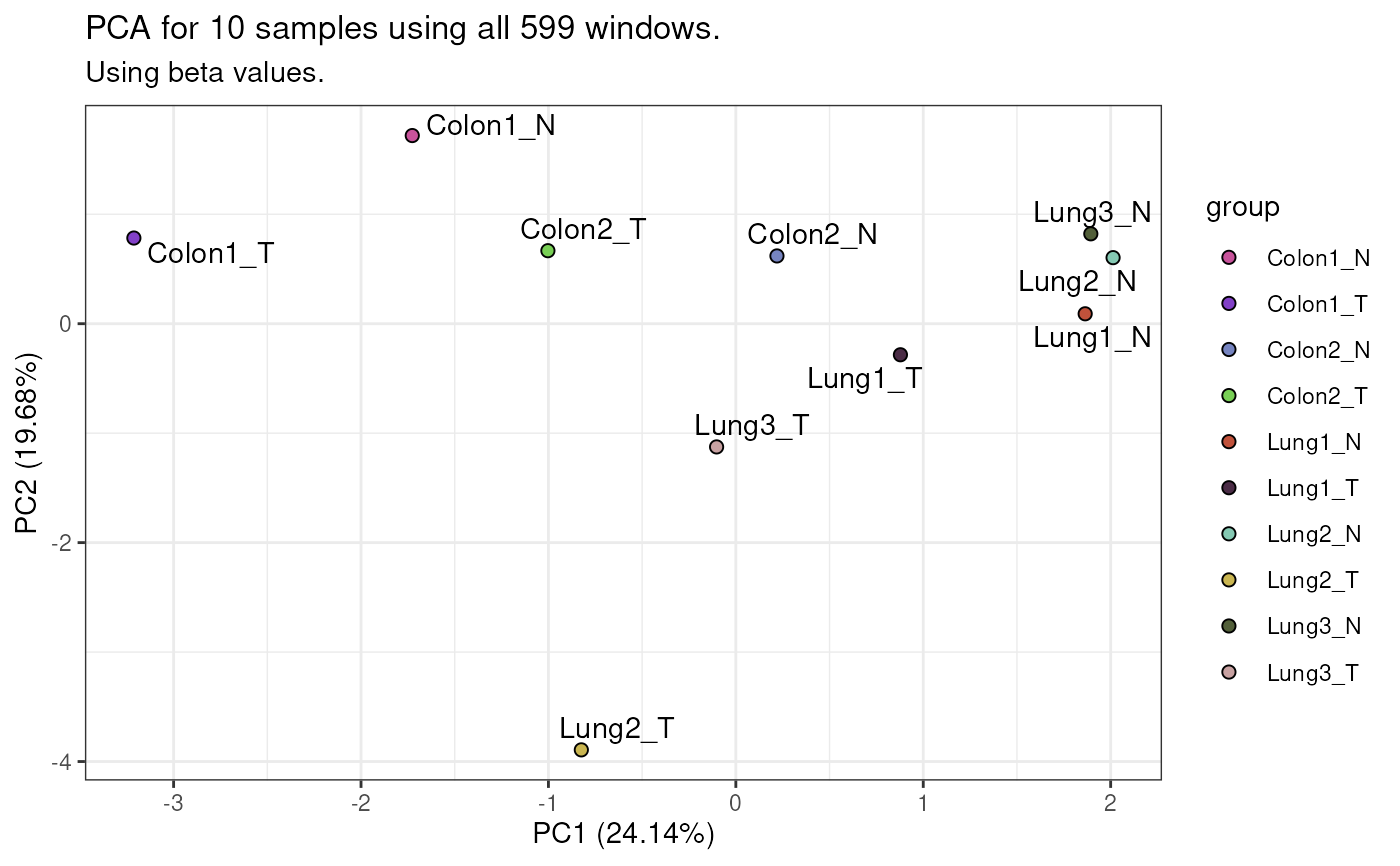

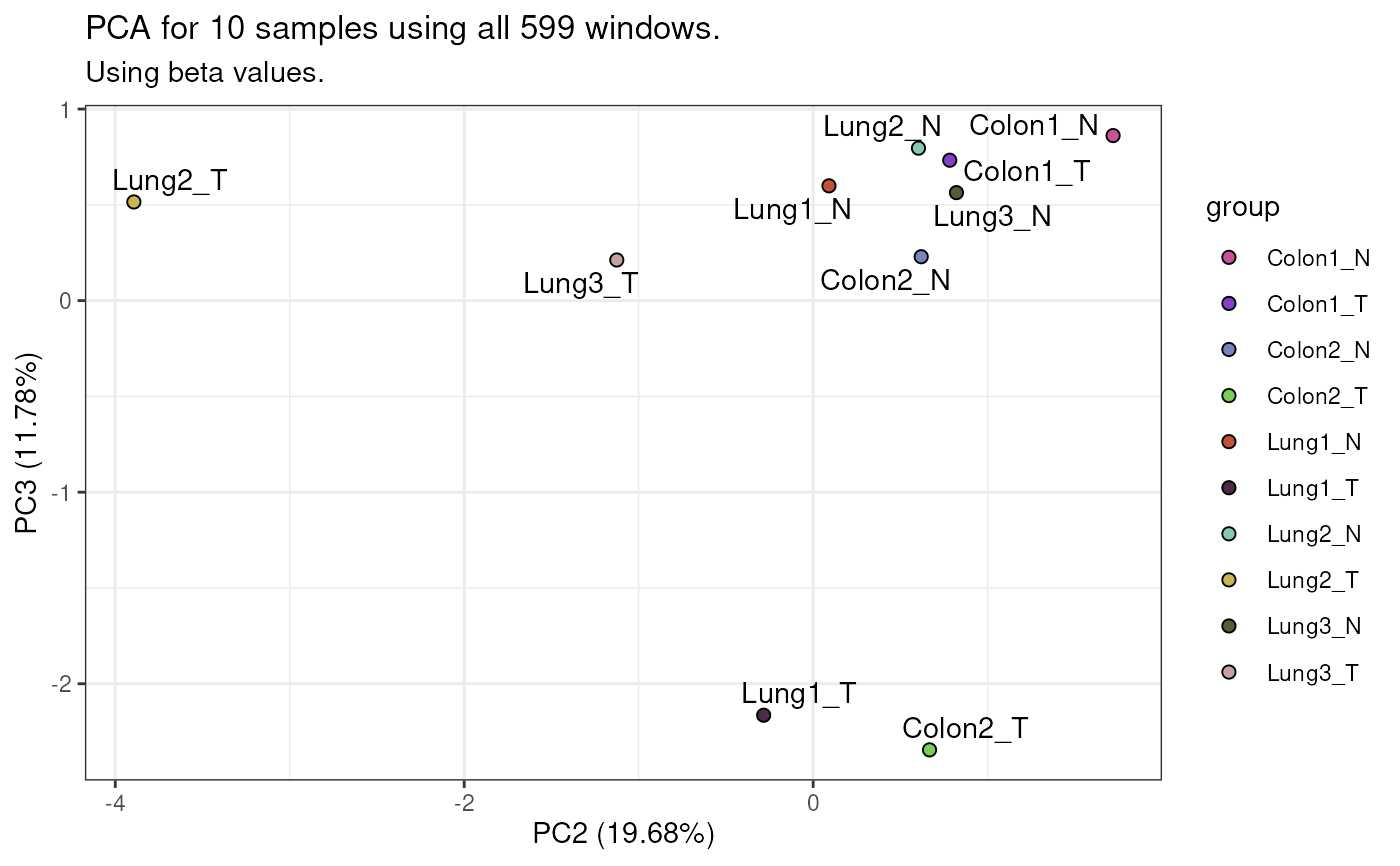

        showSampleNames = TRUE
    )
#> ------------------------------
#> Initial number of windows = 819.
#> -----------
#> Generating table of beta values for 819 regions across 10 samples.
#> -----------
#> Filtered out 220 windows with at least one missing value: 599 windows remaining.
#> ------------------------------
#> The following topVarNum values are larger than the number of remaining windows (= 599): 1000
#> These values are not used; PCA will be done with all remaining windows instead.
#> ------------------------------
#> No filtering of windows based on window standard deviation.
#> Performing PCA with 10 samples and 599 windows
#> -> pca1.
#> ------------------------------
#> $pca1
#> $pca1$group
#> $pca1$group$PC1vsPC2

#>
#> $pca1$group$PC2vsPC3

#>
#>
#>
